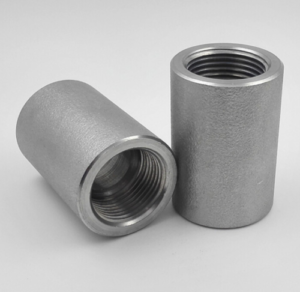

STAINLESS STEEL THREADED COUPLING

Stainless Steel Threaded Coupling Introduction

ADK ENGINEERING CO.,LIMITED is a professional stainless Steel Threaded Coupling supplier from China,we mainly supply stainless steel pipe fittings and duplex steel pipe fittings for end users.Type:Stainless steel butt weld pipe fitting,Stainless steel threaded pipe fittings,Stainless steel socket weld pipe fittings.

BEST QUALITY OF STAINLESS STEEL THREADED COUPLING

Name:Stainless Steel Threaded Coupling

Steel Material:Stainless Steel

Stainless Steel Grade:ASTM/ASME A182:

F304,F304L,F304H,F316,F316L,F317,F317L,F321,F347,F904L

Category:Stainless Steel Threaded Coupling

Size:1/8″-4″

Threaded Type:NPT or BSP(British Standard Pipe Thread)

Pressure Class:2000LBS 3000LBS 6000LBS

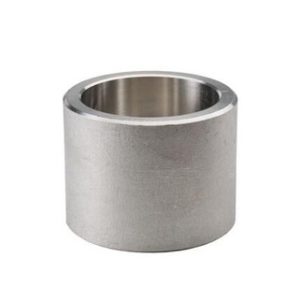

STAINLESS SOCKET WELD COUPLING

Standard:ANSI B16.11 or ASME B16.11

Export Countries:Thailand,Vietnam,Malaysia,Philippine,Singapore.

Delivery date:in 10 days could be ready for shipment,or to oroder

Loading Port:Tianjin,Qingdao,Shanghai,Ningbo,Shenzhen.etc

Shipment term:LCL,FCL,BULK VESSEL,EXPRESS.ect

Payment term:LC,TT,CAD.etc

Documents:CI,PL,BL,CO,MTC,Inspection report.etc

Pipe Coupling

A coupling connects two pipes. If their sizes differ,the fitting is known as a reducing coupling,reducer,or an adapter.There are two types of couplings: “regular” and “slip”. A regular coupling has a small ridge or stop internally, to prevent over-insertion of a pipe, and thus under-insertion of the other pipe segment (which would result in an unreliable connection). A slip coupling (sometimes also called a repair coupling) is deliberately made without this internal stop, to allow it to be slipped into place in tight locations, such as the repair of a pipe that has a small leak due to corrosion or freeze bursting, or which had to be cut temporarily for some reason.. Since the alignment stop is missing, it is up to the installer to carefully measure the final location of the slip coupling to ensure that it is located correctly.

Stainless Steel Pipe Coupling type:Threaded Pipe Coupling,Socket Pipe Coupling,Full Coupling,Half-Coupling

Stainless Steel Threaded Coupling belongs  to Threaded Pipe Fittings,which is a UK standard of pipe fittings,which used to achieve pressure tight joints by threads alone.Functionally superior in nature,there threaded pipe fittings can with stand high pressure while maintaining smooth flow of liquid by preventing leakage.This kind of threaded pipe fittings including stainless steel threaded pipe fittings,carbon steel threaded pipe fittings and alloy steel threaded pipe fittings,which are long lasting and rust free.

Manufacture type:Seamless,ERW,Fabricated,Forged

Items included in Threaded pipe fittings:

1.Full Couplings(NPT),Half couplings(NPT), Full Couplings(BSP),Half couplings(BSP)

Full Couplings(BSPT),Half couplings(BSPT), Full Couplings(FNPT),Half couplings(FNPT)

2.NPT Threaded Elbows,Glavanized Threaded Elbow,90 degree Threaded Elbow,45 degree Threaded Elbow,180 Degree Elbow

3.Threaded Busing Hex Head,Threaded Hex Plug

4.Threadolet(NPT),Threadolet(BSP),Galvanized Threadolet(MSS SP-97)

5.Threaded Cross Tee,Threaded Union

6.Threaded Nipple,Galvanized Threaded Nipple.

7.Threaded Cap,Galvanized Threaded Caps.
