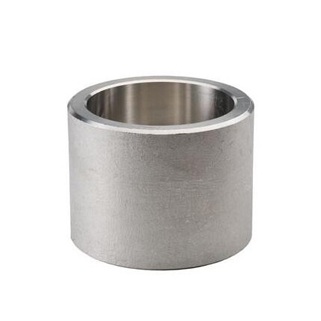

STAINLESS STEEL SOCKET COUPLING

Stainless Steel Socket Coupling Introduction:

ADK ENGINEERING CO.,LIMITED is a professional Stainless Steel Socket Coupling supplier from China which could supply Stainless Steel and Duplex Steel pipe couplings for end user,and we mainly provide Stainless Steel Butt Weld Pipe Fittings,Stainless Steel Threaded Pipe Fittings,Stainless Steel Socket Weld Pipe Fittings,and Stainless Steel Pipe Flanges and other Stainless Steel Pipe Fittings.Hope we could support you Stainless Steel Pipe Fittings on your pipeline project in the future time.

CHINA STAINLESS STEEL SOCKET COUPLING SUPPLIER

Name:Stainless Steel Socket Coupling

Steel material:Stainless Steel and Duplex Steel

Connect Type:Socket Weld

Steel Grade:ASTM/ASME A182

F304,304L,304H,309,310,316,316L,317L,321,347,904L

Duplex Steel grade:ASTM A182

F51,F53,F55 S31803,S32205,S32550,S32750,S32760

Standard:ASTM/ASME B16.11,BS3799,GOST 8955-75

Specification:ASTM A182,ASME SA182

Size:1/8″ to 4″  Schedule:Sch10s to Sch XXS

Pressure Class:3000Lbs,6000Lbs,9000Lbs

Type of Stainless Steel Socket Coupling:

Stainless Steel Half Socket Weld Coupling,Stainless Steel Full Socket Weld Coupling

Mill Test Certificate according to EN10204.3.1 and ASME B16.11

The third party inspection(BV or SGS) before shipment.

ADK ENGINEERING CO.,LIMITED offer wide range of stainless steel socket weld pipe fittings for clients,which are widely used in various industries,such as gas and oil,and shipbuilding industry.Our best quality and full size of stainless steel socket pipe fittings confirmed various standard such as the caried grade of stainless steel and duplex steel materials we could supply.

Other Steel Materials and Steel Grade of Socket weld pipe Coupling:

Carbon Steel Grade:ASTM/ASME SA105 ASTM/ASME SA350 LF2,SA350 LF3

Alloy Steel Grade:ASTM/ASME SA182 F1,F5,F9,F11,F22,F91.

Chrome Moly:F5,F9,F11,F22,Plus Duplex,and Exotic alloy.

Coated Service for Pipe Fittings

1.Stainless steel: Pickled, FBE coating

2.Carbon steel: Galvanized and Black Primer

3.Alloy Steel: Vanish,Galvanized,FBE coating

Loading Port:Shanghai,Tianjin,Qingdao,Shenzhen

Packing:Standard Exporting Wooden Box

Shipment term:Express,LCL,FCL,20FT,40FT.

Doc:CI,PL,BL,CO,FORME,FORMF,FORMA.etc

New Enquiry please Email us:info@ipipefittings.com

Stainless Steel Socket Coupling belongs to Pipe Coupling,A pipe coupling(copla) connects two pipes.If their sizes differ,the fitting is known as a reducing coupling,reducer,or an adapter.There are two types of pipe couplings: “regular” and “slip”.A regular pipe coupling has a small ridge or stop internally,to prevent over-insertion of a pipe,and thus under-insertion of the other pipe segment (which would result in an unreliable connection).A slip coupling (sometimes also called a repair coupling) is deliberately made without this internal stop,to allow it to be slipped into place in tight locations,such as the repair of a pipe that has a small leak due to corrosion or freeze bursting,or which had to be cut temporarily for some reason.Since the alignment stop is missing,it is up to the installer to carefully measure the final location of the slip coupling to ensure that it is located correctly.Stainless steel coupling(copla) are used in commercial plumbing and pipe fitting applications,stainless steel coupling(copla) are corrosion resistant coupling that are available in a range of connection types,size,grade,and packages.

ADK ENGINEERING CO.,LIMITED is a main exporter of stainless steel and duplex steel pipe coupling from China,wish we could support you on the pipe fitting project.
