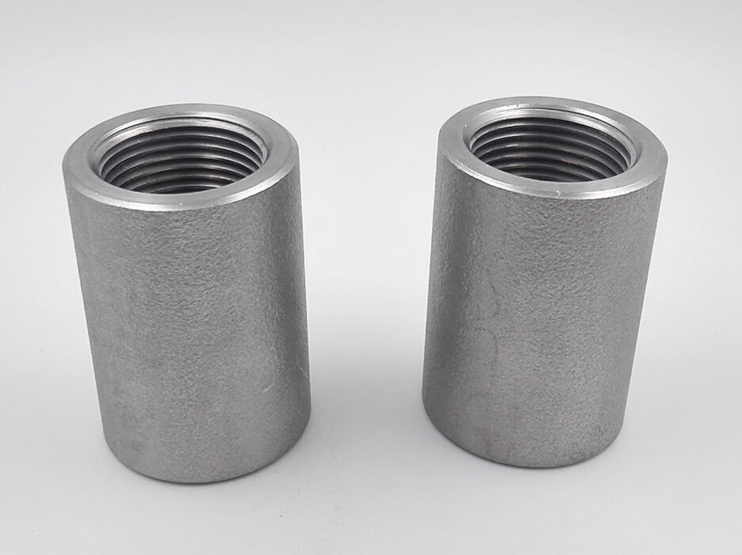

STAINLESS BSP THREADED END COUPLING

Brief Introduction of Stainless BSP Threaded End Coupling

ADK ENGINEERING CO.,LIMITED is a professional supplier for Stainless BSP Threaded End Coupling for pipeline project,and we could provide stainless steel and duplex steel pipe fittings,main type based on Butt Welded Pipe Fittings,Threaded Pipe Fittings,Socket Weld Pipe Fittings.

CHINA STAINLESS BSP THREADED END COUPLING

Name:Stainless BSP Threaded End Coupling

Steel material:Stainless Steel

Steel Grade:ASTM/ASME A182:

F304,F304L,F304H,F316,F316L,F317,F317L,F321,F347,F904L

Category:BSP end Coupling

Size:1/8″-4″    Threaded Type:BSP(British Standard Pipe Thread)

Class:2000Lbs 3000Lbs,6000Lbs

Standard:ANSI B16.11 or ASME B16.11

Mill Test Certificate according to EN10204.3.1

The third party inspection(BV or SGS) before shipment.

A coupling connects two pipes. If their sizes differ, the fitting is known as a reducing coupling, reducer, or an adapter. There are two types of couplings: “regular” and “slip”. A regular coupling has a small ridge or stop internally, to prevent over-insertion of a pipe, and thus under-insertion of the other pipe segment (which would result in an unreliable connection). A slip coupling (sometimes also called a repair coupling) is deliberately made without this internal stop, to allow it to be slipped into place in tight locations, such as the repair of a pipe that has a small leak due to corrosion or freeze bursting, or which had to be cut temporarily for some reason.Since the alignment stop is missing, it is up to the installer to carefully measure the final location of the slip coupling to ensure that it is located correctly. Stainless steel coupling are used in commercial plumbing and pipe fitting applications,stainless steel coupling are corrosion resistant coupling that are available in a range of connection types,size,grade,and packages.ADK ENGINEERING CO.,LIMITED is a main exporter of stainless steel pipe coupling from China,wish we could support you on the pipe fitting project.

Type of Stainless BSP Threaded End coupling:

Full Couplings(NPT),Half couplings(NPT), Full Couplings(BSP),Half couplings(BSP), Full Couplings(BSPT),Half couplings(BSPT), Full Couplings(FNPT),Half couplings(FNPT)

Standard of coupling:ASME B16.11,BS3799, GOST 8955-75

Other Steel Materials and Steel Grade of Steel Pipe Couplings:

Carbon Steel Grade:ASTM/ASME SA105 ASTM/ASME SA350 LF2,SA350 LF3

Alloy Steel Grade:ASTM/ASME SA182 F1,F5,F9,F11,F22,F91.

Heavey Metal Alloy:Monel,Nickel,Inconel,Hastealloy,Copper,Brass,Bronze,Titanium,Tantalum,Bismuth,Aluminum,Duplex steel,Super Duplex steel,Zinc,Lead.Chrome Moly:F5,F9,F11,F22,Plus Duplex,and Exotic alloy.

ADK ENGINEERING CO.,LIMITED is the professional exporter of Stainless BSP Threaded End Coupling from China,welcome all client visit and purchase stainless steel pipe fittings from us.
