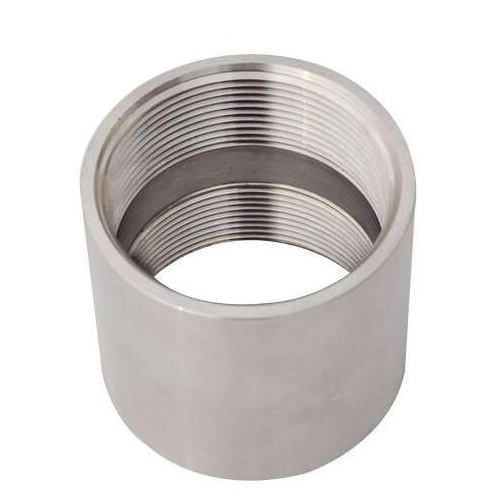

STAINLESS 316 PIPE COUPLING

Stainless 316 Pipe Coupling Information:

ADK ENGINEERING CO.,LIMITED is the most professional Stainless 316 Pipe Coupling Supplier from China,which is the main supplier of stainless steel socket welded pipe full couplings,stainless steel threaded weld pipe full couplings,stainless steel socket welded pipe half couplings,stainless steel threaded weld pipe half couplings and stainless steel pipe reducing couplings from China,Hope we could support your pipeline project in the future time.

CHINA STAINLESS 316 PIPE COUPLING SUPPLIER

Name:Stainless 316 Pipe Coupling

Material:Stainless Steel

Steel Grade:ANSI 316/ANSI316L

SS316 Threaded coupling with BSP threaded end

SS316 Threaded coupling with NPT threaded end

SS316 Socket Full Coupling

SS316 Socket Half-Coupling

Size:1/8″–4″

Pressure Class:2000Lbs,3000Lbs,6000Lbs,9000Lbs

Standard:ANSI B16.11 or ASME B16.11,BS3799, GOST 8955-75

Mill Test Certificate according to EN10204.3.1 and ASME B16.11

The third party inspection(BV or SGS) before shipment.

Other Steel Materials and Steel Grade of Steel Pipe Couplings:

Stainless Steel:ASTM/ASME A182: F304,F304L,F304H,F317,F317L,F321,F347,F904L

Carbon Steel Grade:ASTM/ASME SA105 ASTM/ASME SA350 LF2,SA350 LF3

Alloy Steel Grade:ASTM/ASME SA182 F1,F5,F9,F11,F22,F91.

Heavey Metal Alloy:Monel,Nickel,Inconel,Hastealloy,Copper,Brass,Bronze,

Titanium,Tantalum,Bismuth,Aluminum,Duplex steel,Super Duplex steel,Zinc,Lead.

Chrome Moly:F5,F9,F11,F22,Plus Duplex,and Exotic alloy.

Stainless 316 Pipe Coupling belongs to Stainless steel Pipe Coupling,A pipe coupling connects two pipes.If their sizes differ,the fitting is known as a reducing coupling,reducer,or an adapter.There are two types of pipe couplings: “regular” and “slip”.A regular pipe coupling has a small ridge or stop internally,to prevent over-insertion of a pipe,and thus under-insertion of the other pipe segment (which would result in an unreliable connection).A slip coupling (sometimes also called a repair coupling) is deliberately made without this internal stop,to allow it to be slipped into place in tight locations,such as the repair of a pipe that has a small leak due to corrosion or freeze bursting,or which had to be cut temporarily for some reason.Since the alignment stop is missing,it is up to the installer to carefully measure the final location of the slip coupling to ensure that it is located correctly.Stainless steel coupling are used in commercial plumbing and pipe fitting applications,stainless steel coupling are corrosion resistant coupling that are available in a range of connection types,size,grade,and packages.ADK ENGINEERING CO.,LIMITED is a main exporter of stainless steel and duplex steel pipe coupling from China,wish we could support you on the Stainless Steel Pipe Fitting project.
