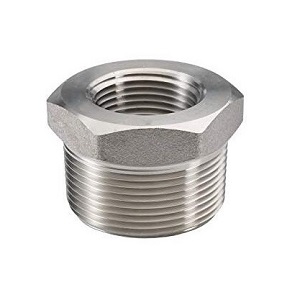

Here we introduce our product based on 304 Stainless Steel Bushing
A stainless steel bushing is a pipe fitting which serves as a reducer. It is a sleeve similar to a close nipple, but is threaded on both its inner and outer circumferences. Like a reducer, a double threaded bushing has two threads of different sizes.A double threaded bushing is more compact than a reducer, but not as flexible.
While a double threaded bushing has a smaller female thread concentric to a larger male thread (and thus couples a smaller male end to a larger female), a reducer may have large and small ends of either gender. If both ends are the same gender, it is a gender-changing reducer. There are similar fittings for both sweat and solvent joinery. Since they are not threaded, they are simply called reducing bushings.
A stainless double threaded bushing also named as a stainless hex bushing,double tapped bushing,which are the same product.and some time there are also bushing with one threaded end and another with socket weld end,which will according to the correct application environment from the end user.so we would provide all size and different type of stainless steel threaded bushing and stainless steel threaded to socket weld bushing for all clients.welcome to visit us and negotiate project in the future time.
Size | Product Type | Reducing | Pressure | End Type | Material |
---|---|---|---|---|---|
1/2" | Hex Bushing | 1/4" | 3000# | Threaded | AISI-304/304L |
1/2" | Hex Bushing | 1/4" | 3000# | Threaded | AISI-316/316L |
1/2" | Hex Bushing | 3/8" | 3000# | Threaded | AISI-304/304L |
1/2" | Hex Bushing | 3/8" | 3000# | Threaded | AISI-316/316L |
As a professional stainless steel pipe fittings supplier,ADK ENGINEERING CO.,LIMITED shall provide you stainless steel butt weld pipe fittings,stainless steel socket weld pipe fittings,stainless steel threaded pipe fittings and stainless steel pipe flanges well.
Our 304 Stainless Steel Bushing manufactured according to ASME/ASTM B16.11
Mill Test Certificate:EN10204.3.1
Main steel grade as follows: ASTM/ASME A182: F304,F304L,F304H,F316,F316L,F317,F317L,F321,F347,F904L.
Duplex Steel :ASTM A182-F51 F53 F55 S31803 S32205 S32550 S32750 S32760 S32950
Wish our high quality stainless steel pipe fittings could benefit your project in the future time.
Try our products and service,we will service for you forever.(info@ipipefittings.com)
